Attachment handling

Which modes are available and what do they do?

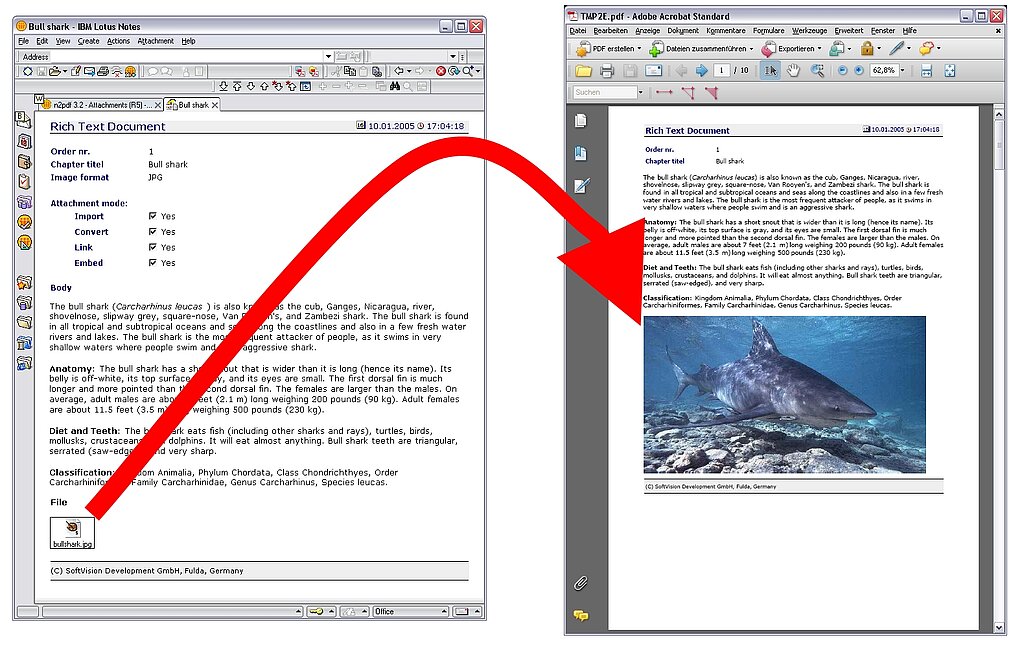

The content of the attachment is visibly imported directly into the PDF file. This mode is called Import mode.

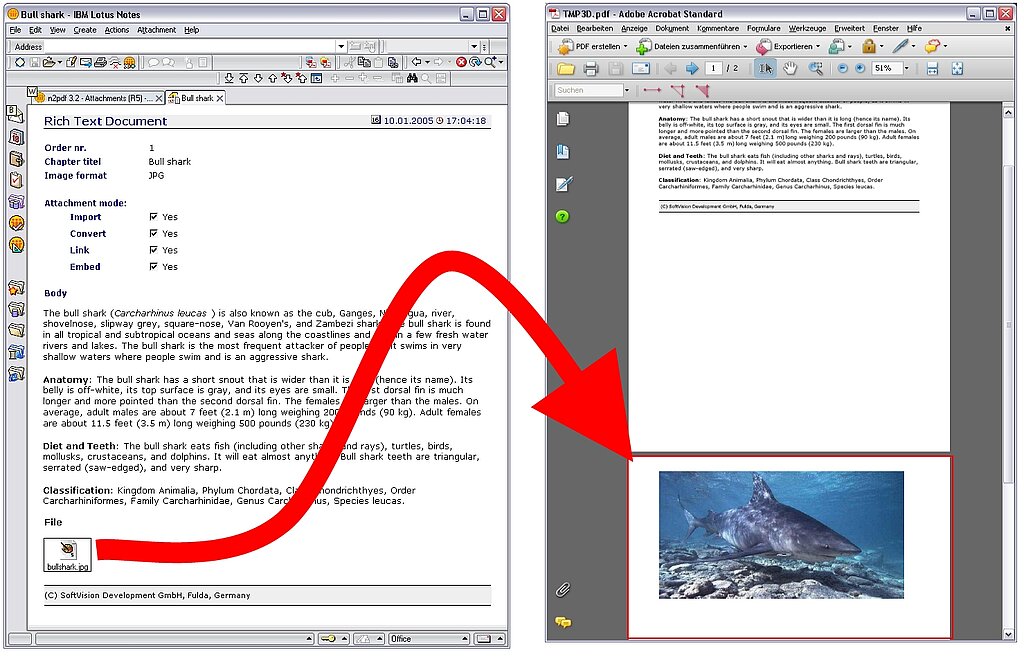

All content of the attachment is attached to the end of the PDF file after the conversion. This is called Convert mode.

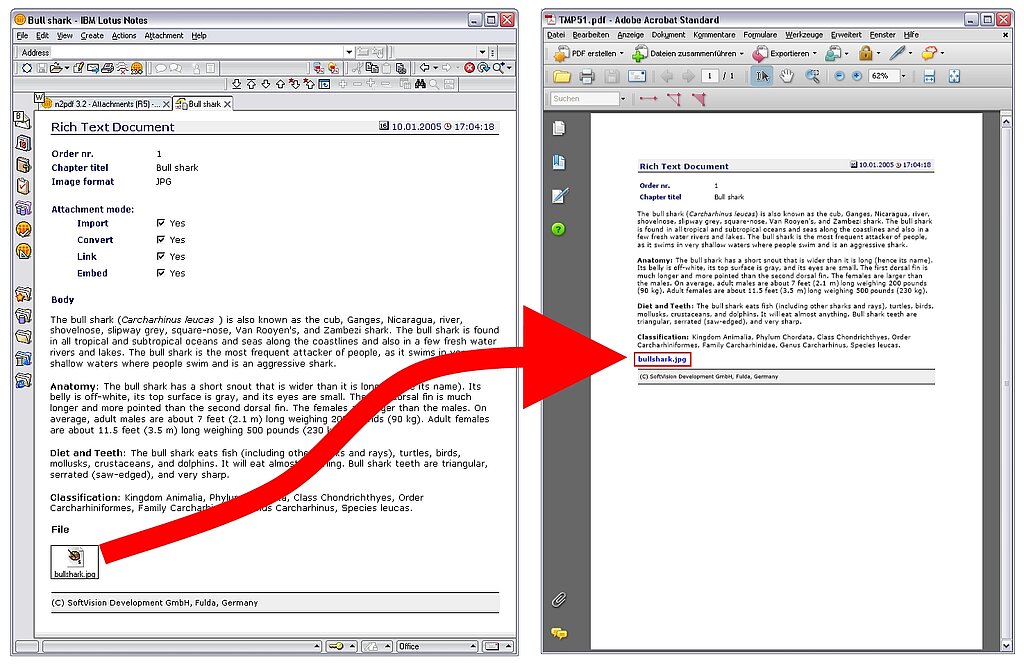

The attachment is saved on the file system and a link to the file is inserted in the PDF. This mode is the Link mode.

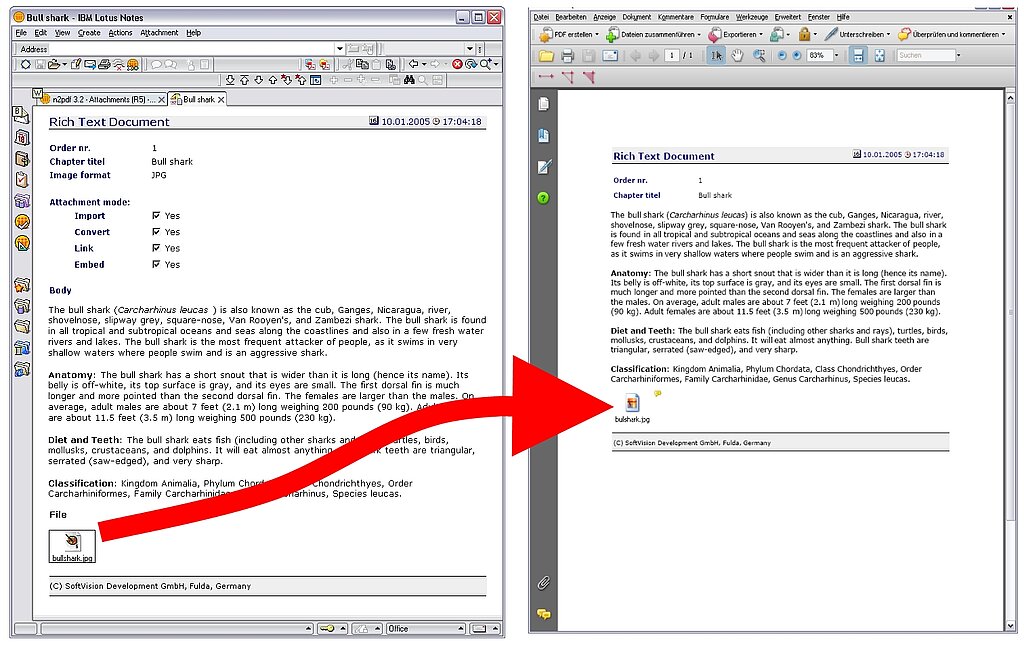

The attachment is embedded in the PDF file and can also be opened there as file. Therefore this mode is the Embed mode.

How are the individual modes activated?

You can control the mode that n2pdf should use to convert your attachments by calling the function N2PDFSetOption, the parameter N2PDFOPTION_ATTACHMENT_MODE and the desired mode in your application. All attachments that you pass after you have made these settings are shown in the desired mode in the future PDF.

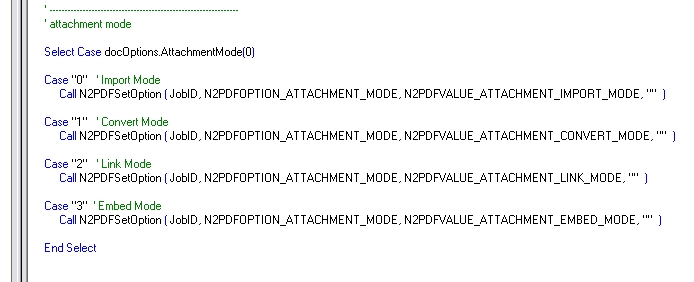

Example: Embed attachments in the PDF file

Here is a sample of how the functions could be used:

Here are a few examples to illustrate, how the individual attachment modes would convert your attachments:

Further options

In addition to the actual activation of the modes you can also take influence on the output and the display of the content itself using various options.

You can show alternative symbols, if you don't like the icon defined by your operating system, or set the file name for the link to the file system in the text format. Further options can be found in our sample database "n2pdf 3.2. Attachments (R5)".

Of course, our technical support is available to you anytime and free of charge.
